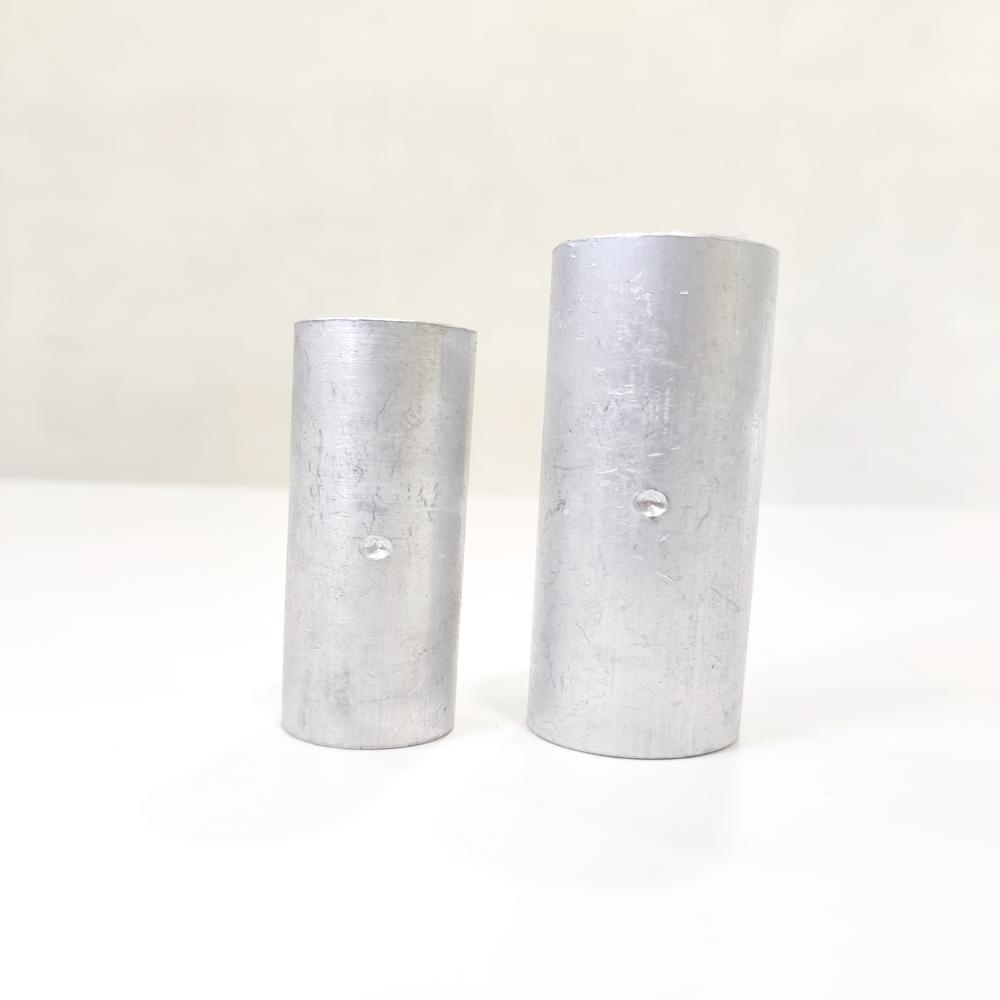

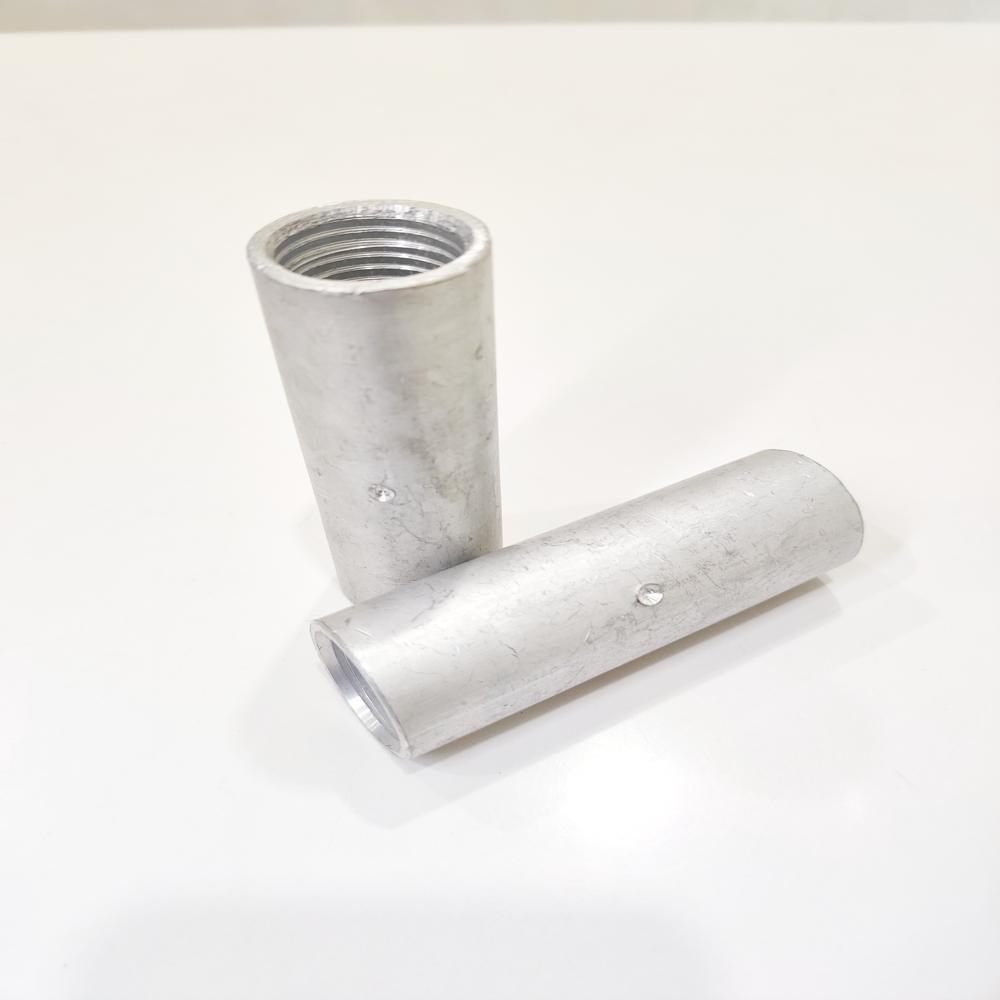

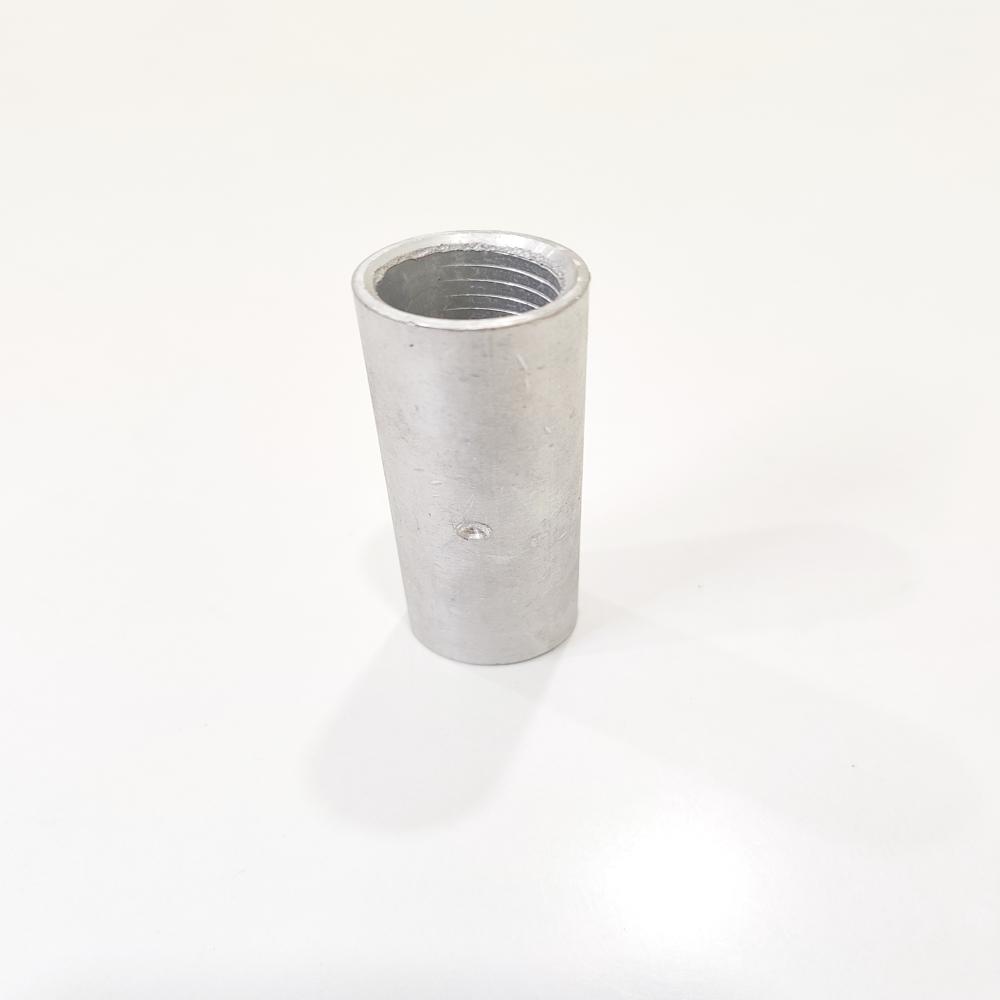

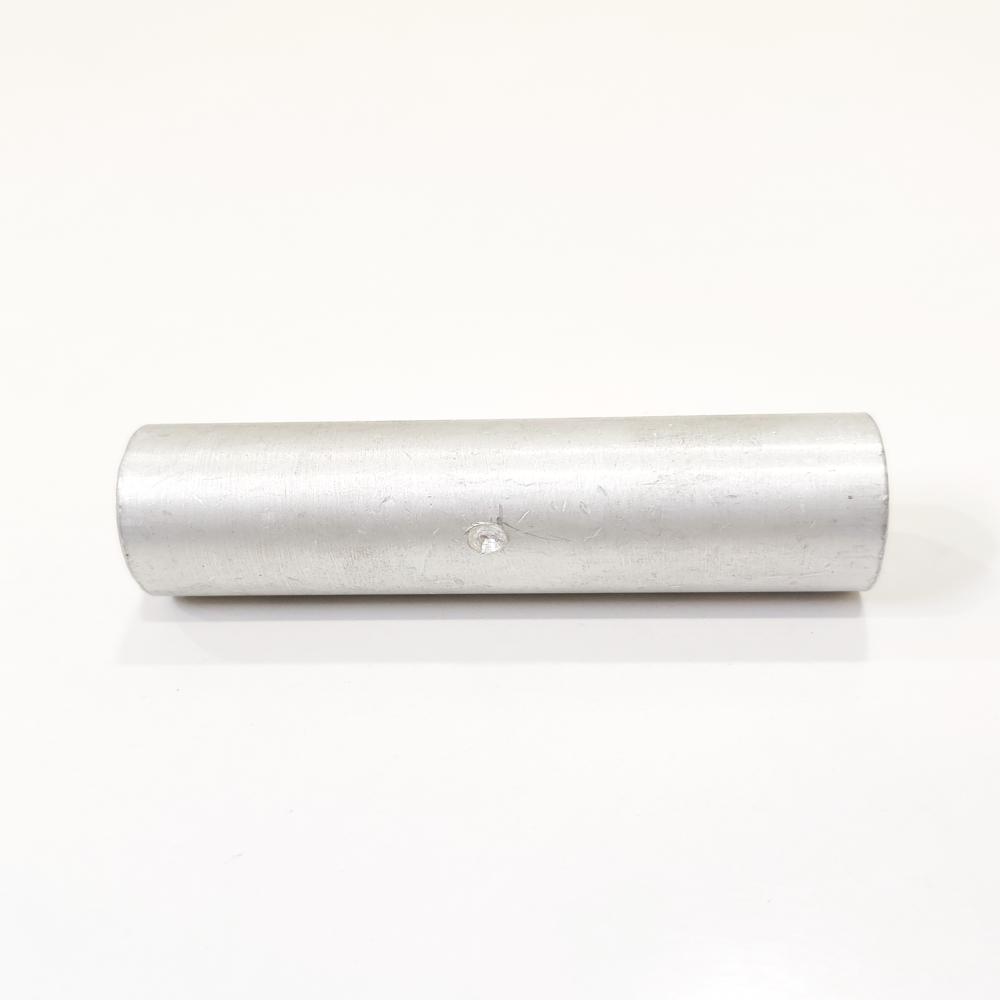

Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector
Aluminum Inline Connector

Aluminum Inline Connector

MOQ : 1000 Pieces

Aluminum Inline Connector Specification

  • Cable Diameter
  • 10-40 mm (depends on variant)
  • Surface Treatment
  • Uncoated / Mill Finish
  • Thickness
  • 2-4 mm
  • Sealed
  • NO
  • Product Type
  • Inline Connector
  • Material
  • Aluminum
  • Application
  • Power Transmission & Distribution
  • Contact Resistance
  • <0.5 m
  • Insulation Resistance
  • >10 M
  • Diameter
  • Approx. 20 mm (customizable)
  • Terminal Socket
  • Round, Threaded
  • Style
  • Tube Connector
  • Fittings
  • Inline
  • Rated Voltage
  • Up to 600V
  • Weight
  • Approx. 50-120g (varies with size)
  • Color
  • Natural Silver
  • Finish Type
  • Smooth Exterior
  • Standards Compliance
  • IS/IEC Standards
  • Operating Temperature Range
  • -40C to +90C
  • Corrosion Resistance
  • Yes, basic aluminum protection
  • Usage Environment
  • Indoor/Outdoor
  • Compatible Cable Type
  • Aluminum & Copper Conductors
  • Length
  • 50-120 mm (as per model)
  • Conductivity
  • Highly conductive aluminum grade
  • Reusable
  • Yes
  • Mounting Type
  • Straight Inline


Aluminum Inline Connector Trade Information

  • Minimum Order Quantity
  • 1000 Pieces
  • Delivery Time
  • 6 Days


Aluminum Inline Connector About

Aluminum Inline Connectors are high-quality electrical connectors designed to join two aluminium conductors securely while maintaining excellent electrical conductivity and mechanical strength. Manufactured from premium EC-grade aluminium, these connectors ensure low contact resistance, efficient current transfer, and long-lasting performance in power distribution and electrical transmission applications.

Engineered with a precision-machined seamless barrel, Aluminum Inline Connectors provide a reliable crimped joint that resists vibration, corrosion, and environmental stress. Their lightweight yet durable construction makes them ideal for overhead power lines, substations, transformers, switchgear, utility networks, and industrial electrical installations.

Available in a wide range of conductor sizes, these inline connectors are suitable for both standard and customized cable joining applications. They are manufactured in accordance with international quality standards to ensure consistent performance, easy installation, and dependable operation in demanding environments.

Features:

  • Manufactured from high-conductivity EC-grade aluminium
  • Low electrical resistance for efficient current flow
  • Precision seamless barrel for secure crimping
  • Excellent corrosion and oxidation resistance
  • Lightweight with high mechanical strength
  • Durable and vibration-resistant connection
  • Suitable for indoor and outdoor installations
  • Available in multiple conductor sizes
  • Easy installation using standard crimping tools
  • OEM customization and private labeling available


Versatile Power Connector for Demanding Environments

Engineered for resilience, this aluminum inline connector withstands temperature extremes from -40C to +90C and offers basic protection against corrosion. Its adaptability ensures it performs consistently in both indoor and outdoor settings, making it a dependable choice for power transmission and distribution applications.


High Conductivity and Secure Connections

Crafted from a highly conductive grade aluminum, this connector delivers low contact resistance (<0.5 m) and superior insulation (>10 M). Its straight inline design and round threaded sockets promote effortless integration with compatible cables, resulting in strong, lasting electrical connections.


Compatible and Reusable for Flexible Installations

Accommodating aluminum and copper conductor cables from 10 to 40 mm in diameter, this connector supports efficient installations across a range of power transmission systems. Its robust, reusable design allows for multiple uses, reducing waste and operational costs.

FAQ's of Aluminum Inline Connector:


Q: How is the Aluminum Inline Connector installed?

A: To install, align the appropriate cable (aluminum or copper) into each end of the straight inline tube connector, then secure using the round, threaded terminal sockets. Ensure cable diameters and connector size match for safe and effective power transmission.

Q: What environments and conditions is this connector suitable for?

A: This connector is designed for both indoor and outdoor usage. It reliably operates in environments ranging from -40C to +90C, and its corrosion-resistant, uncoated aluminum construction withstands basic outdoor exposure.

Q: When should I choose this inline connector for my project?

A: Select this aluminum inline connector when you require a durable, high-conductivity solution for connecting power transmission cables, particularly in varying or harsh environmental conditions and where IS/IEC standards compliance is necessary.

Q: Where can this connector be used?

A: It's ideal for use in power transmission and distribution systems, including electrical switchboards, substation wiring, and industrial facility connections, accommodating both new installations and upgrades.

Q: What types of cable are compatible with this connector?

A: The inline connector is suitable for joining both aluminum and copper conductors with diameters between 10 and 40 mm, across a voltage rating up to 600V.

Q: How can the connector benefit my electrical installation?

A: Benefits include reusable design for efficiency, strong conductivity for minimal power loss, corrosion resistance for longevity, and compliance with established IS/IEC electrical standards.

Q: What process ensures a reliable connection using this product?

A: Confirm that cable diameters match the specified connector size, insert conductors fully into the tube, and securely tighten the threaded terminals to ensure low-resistance, stable electrical connections.
