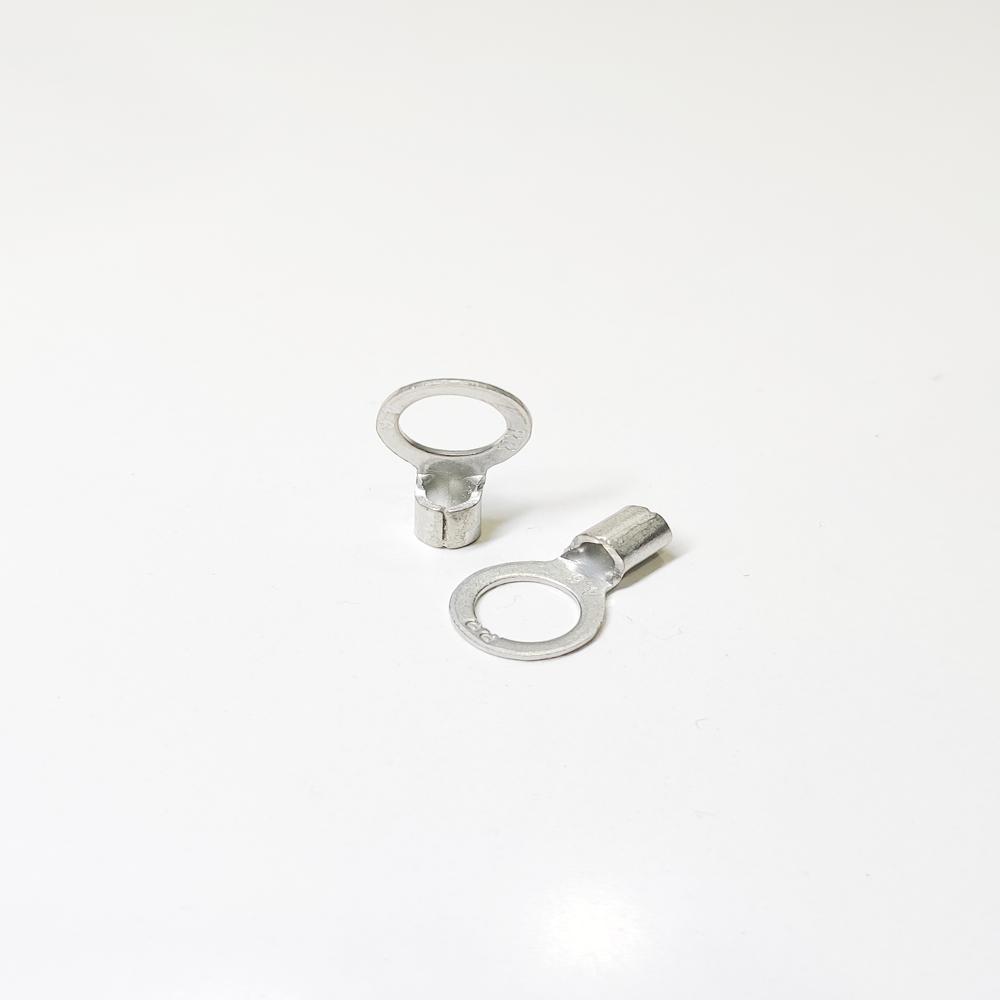

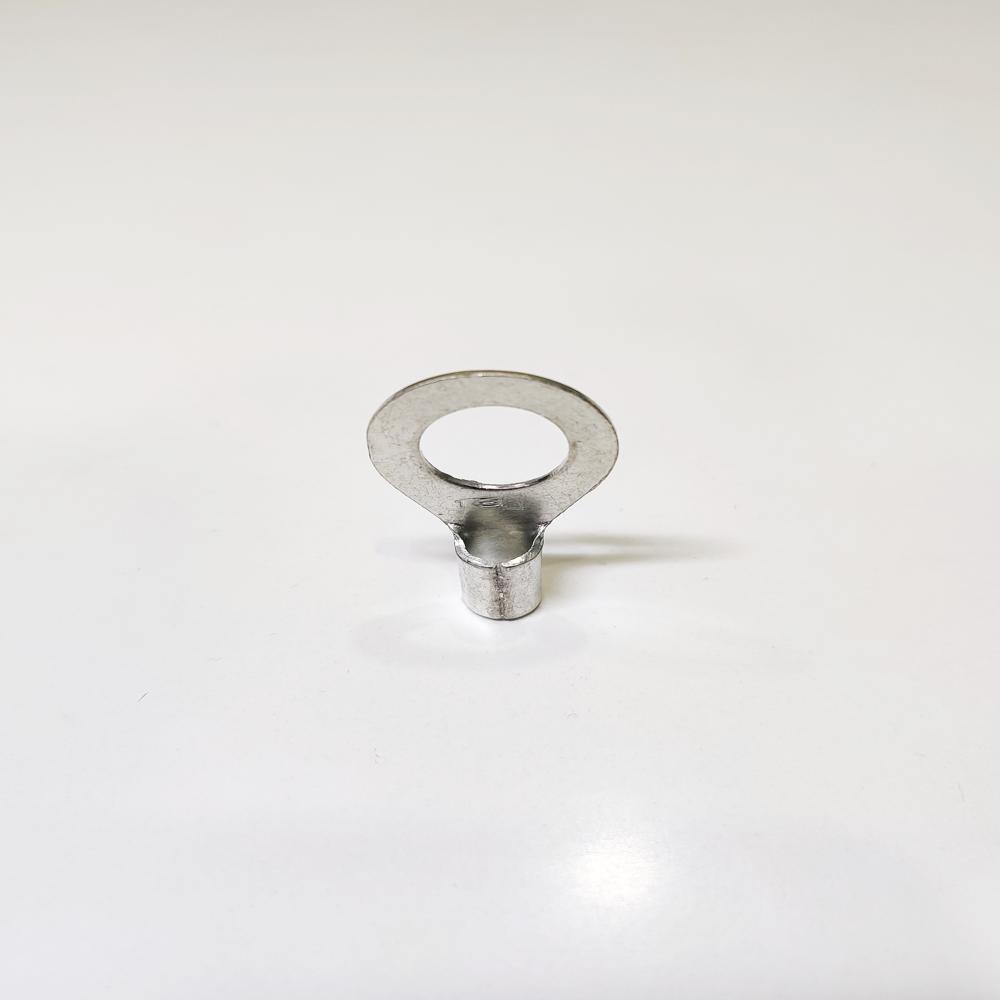

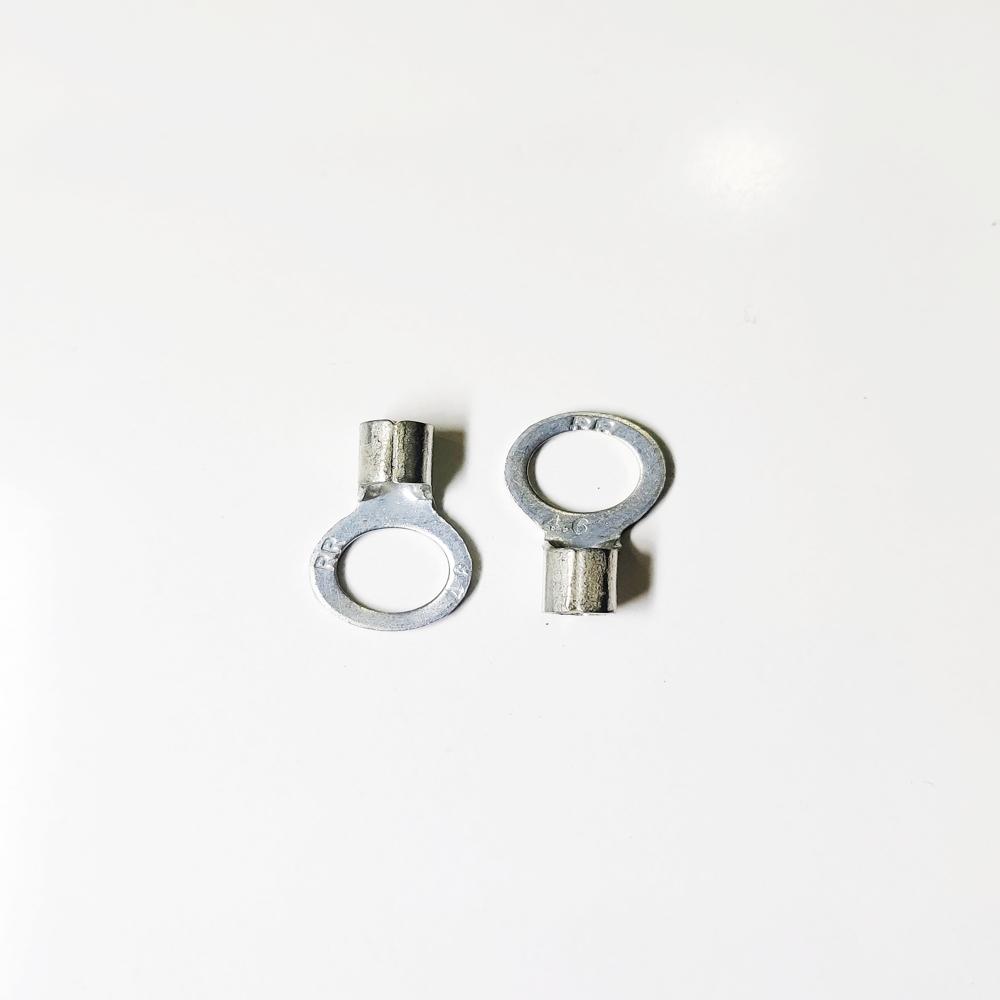

RING TONGUE TERMINAL
RING TONGUE TERMINAL
RING TONGUE TERMINAL
RING TONGUE TERMINAL
RING TONGUE TERMINAL
RING TONGUE TERMINAL

RING TONGUE TERMINAL

Price 6.0 INR/ Piece

MOQ : 1000 Pieces

RING TONGUE TERMINAL Specification

  • Surface Treatment
  • Tin plated for corrosion resistance
  • Thickness
  • 0.8 mm (varies with size)
  • Sealed
  • NO
  • Cable Diameter
  • 1.5 - 6 mm2 (varies with size)
  • Product Type
  • Ring Tongue Terminal
  • Material
  • Copper with tin plating
  • Application
  • Automobile, Control panels, Industrial electrical connections
  • Contact Resistance
  • 0.01
  • Insulation Resistance
  • 10 M
  • Diameter
  • 4 mm / 6 mm / 8 mm (as per specification)
  • Terminal Socket
  • Copper tube
  • Style
  • Ring tongue
  • Fittings
  • Crimp type
  • Rated Voltage
  • 600V
  • Weight
  • Approx. 2-5 grams each
  • Color
  • Silver/Metallic
  • Connection Method
  • Crimp
  • Finish
  • Bright tin-plated
  • Reusability
  • Single-use (non-reusable after crimp)
  • Compatible Wire Range
  • 22-10 AWG
  • RoHS Compliant
  • Yes
  • Operating Temperature
  • -40C to +105C
  • Packaging Type
  • Polybag/Box
  • Flame Retardant
  • No


RING TONGUE TERMINAL Trade Information

  • Minimum Order Quantity
  • 1000 Pieces
  • Delivery Time
  • 7 Days


RING TONGUE TERMINAL About

Ring Tongue Terminals are high-quality electrical connectors designed to provide a secure, permanent, and vibration-resistant connection between electrical wires and terminal studs or screws. Manufactured from premium-grade copper, tinned copper, brass, or aluminium, these terminals offer excellent electrical conductivity, corrosion resistance, and long-lasting performance in demanding industrial and commercial applications.

The closed-ring design prevents accidental disconnection, making Ring Tongue Terminals ideal for high-vibration environments and critical electrical installations. They are compatible with crimping tools for fast and reliable installation and are available in various wire sizes, stud hole diameters, insulation types, and finishes to meet diverse application requirements.

Widely used in electrical panels, switchgear, automotive wiring, industrial machinery, renewable energy systems, telecommunications, and power distribution networks, these terminals ensure efficient current transfer and dependable electrical connections. Custom sizes and specifications can be manufactured to meet customer requirements.

Features:

  • Manufactured from high-conductivity copper, tinned copper, brass, or aluminium
  • Strong closed-ring design for secure fastening
  • Excellent electrical conductivity with low resistance
  • Corrosion and oxidation resistant
  • High mechanical strength and durability
  • Easy and reliable crimp installation
  • Suitable for high-vibration applications
  • Available in insulated and non-insulated versions
  • Wide range of cable sizes and stud hole options
  • Custom designs and OEM manufacturing available


Reliable Electrical Connections

Ring Tongue Terminals ensure consistent, high-quality connections in industrial, automotive, and control panel applications. Made from copper and tin-plated for corrosion resistance, these crimp-fit terminals provide dependable performance in temperatures from -40C to +105C. Their bright finish and various sizes make them versatile for professional wiring tasks.


Designed for Versatility and Safety

Accommodating a wide wire range (22-10 AWG), these terminals are crafted for easy crimping and strong electrical contact. With a rated voltage of 600V and insulation resistance of 10 M, they offer safe installation in demanding environments while maintaining low contact resistance and single-use reliability.

FAQ's of RING TONGUE TERMINAL:


Q: How do I properly install a ring tongue terminal?

A: To install a ring tongue terminal, strip the insulation from the wire, insert the wire into the copper tube socket of the terminal, and securely crimp it using a suitable crimping tool. Ensure tight and reliable contact for optimal electrical performance.

Q: What wire sizes are compatible with these terminals?

A: These ring tongue terminals are compatible with wire ranges from 22 to 10 AWG, accommodating cable diameters between 1.5 mm2 and 6 mm2 depending on the terminal size selected.

Q: When should I use a ring tongue terminal in my project?

A: Use ring tongue terminals when you need a robust, permanent connection for industrial electrical panels, automotive wiring, or similar applications requiring secure, reliable, and corrosion-resistant terminations.

Q: Where can these terminals be applied effectively?

A: These terminals are ideal for use in automobiles, control panels, industrial machinery, and general electrical connections that demand strong conductivity and dependable mechanical fastening.

Q: What is the process for connecting a wire using this terminal?

A: The process involves stripping the wire end, inserting it into the terminal's copper tube, and then crimping the terminal with the appropriate tool. Once crimped, the connection is permanent and not reusable.

Q: What are the key benefits of using tin-plated copper ring terminals?

A: Tin-plated copper provides excellent corrosion resistance and electrical conductivity, ensuring long-lasting, stable connections in varied environments. The crimp connection method offers a quick, secure installation.
