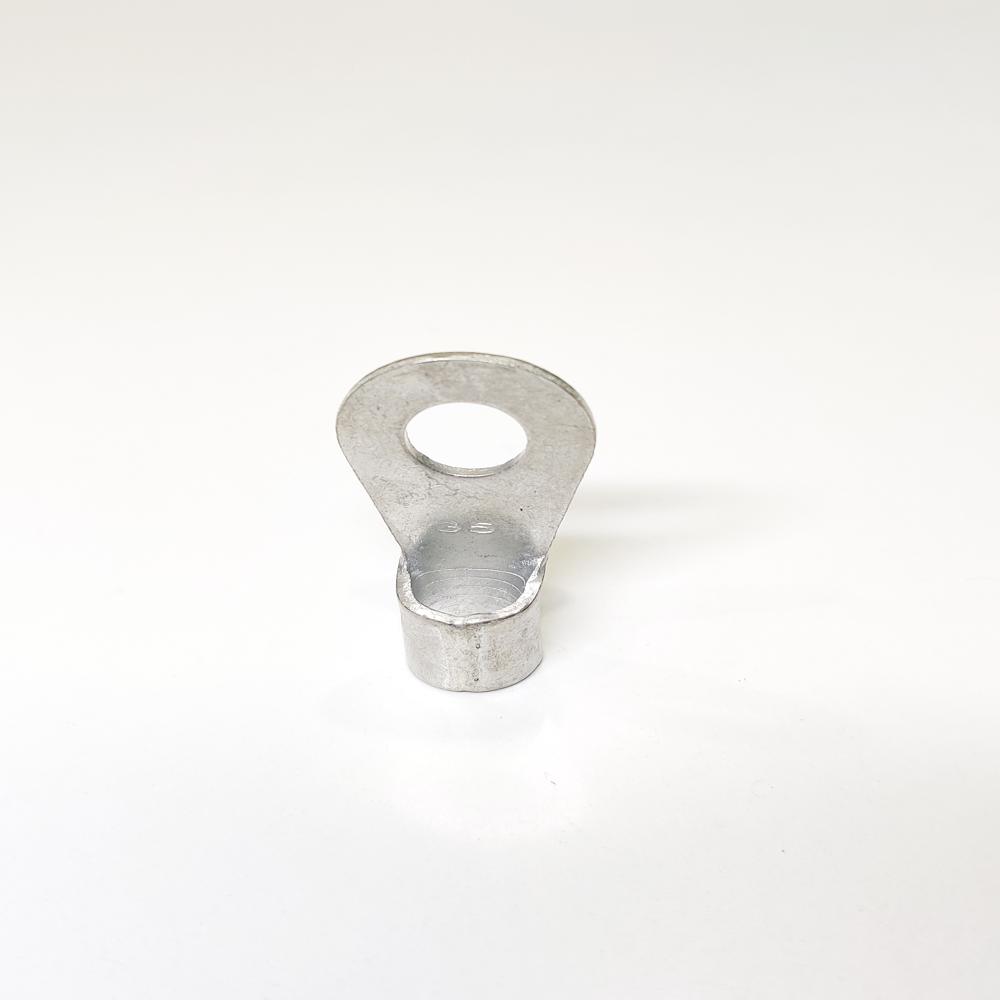

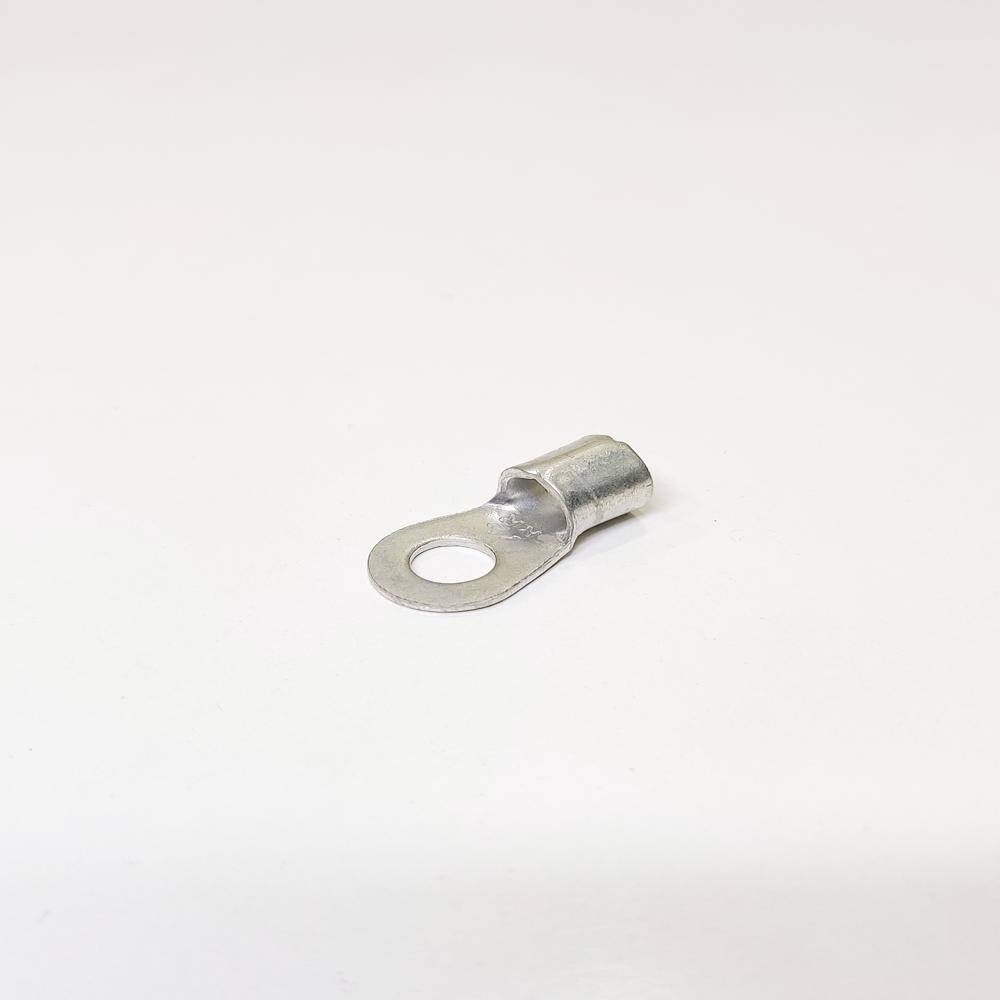

NON INSULATED RING LUG About
Big Hole Ring Lugs are heavy-duty electrical cable terminals designed for secure cable termination on large studs, bolts, and busbars. Manufactured from high-conductivity electrolytic copper, tinned copper, aluminium, or bimetal materials, these lugs provide excellent electrical conductivity, low contact resistance, and reliable mechanical strength for demanding industrial applications.
Featuring an oversized ring hole, these lugs are ideal for installations requiring larger mounting bolts or custom electrical connections. The precision-engineered barrel ensures effective crimping, while the robust ring design offers a firm, vibration-resistant connection that minimizes the risk of loosening during operation. The corrosion-resistant finish enhances durability, making these lugs suitable for both indoor and outdoor environments.
Big Hole Ring Lugs are widely used in power distribution systems, electrical panels, switchgear, transformers, battery banks, renewable energy installations, industrial machinery, and heavy electrical equipment. They are available in a wide range of cable sizes, stud hole diameters, barrel lengths, and custom specifications to meet OEM and industrial requirements.
Features:
- Manufactured from high-conductivity copper, tinned copper, aluminium, or bimetal
- Oversized ring hole for large studs and bolts
- Low electrical resistance for efficient current flow
- Strong crimp barrel for secure cable termination
- Excellent corrosion and oxidation resistance
- High mechanical strength and vibration-resistant design
- Suitable for heavy-duty electrical applications
- Available in multiple cable sizes and hole diameters
- Precision manufactured for consistent performance
- OEM customization and private labeling available
Secure Connections for Demanding ApplicationsNon-insulated ring lugs provide dependable electrical connectivity in environments ranging from industrial control panels to commercial switchboards. Their mechanical connection and crimp-fit design ensure stable performance and minimize signal or power loss, making them a trusted choice for professionals.
Corrosion-Resistant and Durable DesignEach lug is manufactured from copper or tinned copper and treated with a tin-plated finish. This provides lasting resistance to corrosion, even in challenging environments, while the smooth, bright surface ensures reliable conductivity and ease of handling during installation.
Flexible Solutions for Different Cable SizesWith a range of inner ring diameters (4 mm to 12 mm) and compatibility with cable diameters from 1.5 mm2 to 35 mm2, these lugs adapt easily to various wiring requirements. Whether updating a small control box or installing extensive industrial panels, there's a suitable size available.
FAQ's of NON INSULATED RING LUG:
Q: How do I properly install a non-insulated ring lug?
A: To install a non-insulated ring lug, insert the stripped end of the wire into the closed barrel of the lug, then use a suitable crimping tool to compress the barrel securely around the conductor. This creates a reliable mechanical and electrical connection.
Q: What is the typical application for these ring lugs?
A: These ring lugs are widely used in electrical wiring for switchboards, control panels, power distribution units, and other industrial or commercial installations where secure and low-resistance connections are necessary.
Q: When should I choose a non-insulated ring lug over an insulated one?
A: Choose a non-insulated ring lug when working in environments where additional insulation is not required or where space constraints make insulated lugs impractical. They're ideal for controlled environments or inside enclosures where the risk of accidental contact is minimal.
Q: Where can I use these lugs based on their operating temperature range?
A: Non-insulated ring lugs are designed to perform reliably in environments with ambient temperatures from -40C to 105C, suitable for both indoor and protected outdoor electrical installations.
Q: What are the benefits of tin plating and copper material in these lugs?
A: Tin-plated copper provides excellent conductivity and superior corrosion resistance. The smooth, metallic finish enhances durability and offers low contact resistance, ensuring consistent electrical performance over time.
Q: What is the process for selecting the correct size of ring lug for my application?
A: To select the proper size, match your wire's cross-sectional area and the required ring inner diameter to the corresponding lug specifications. Ensure that the lug fits securely over the wire and the bolt or stud it will be fastened to.
