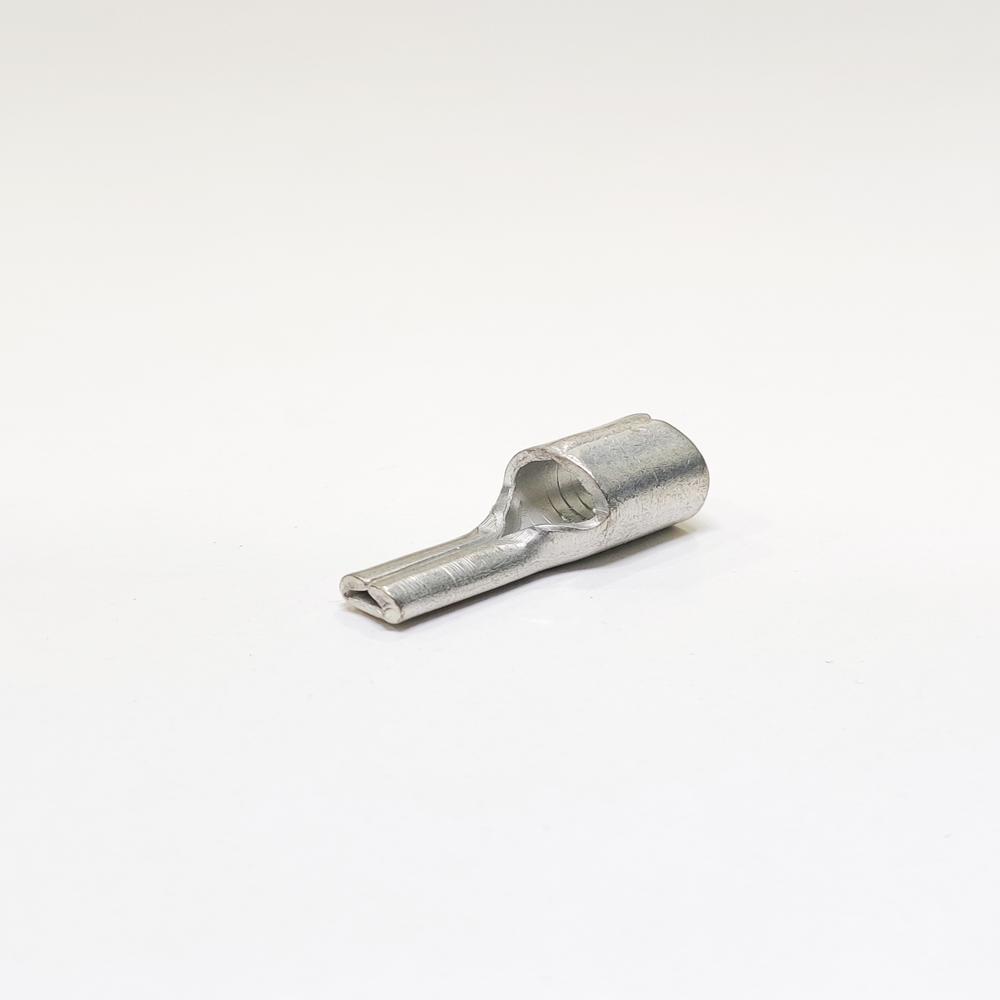

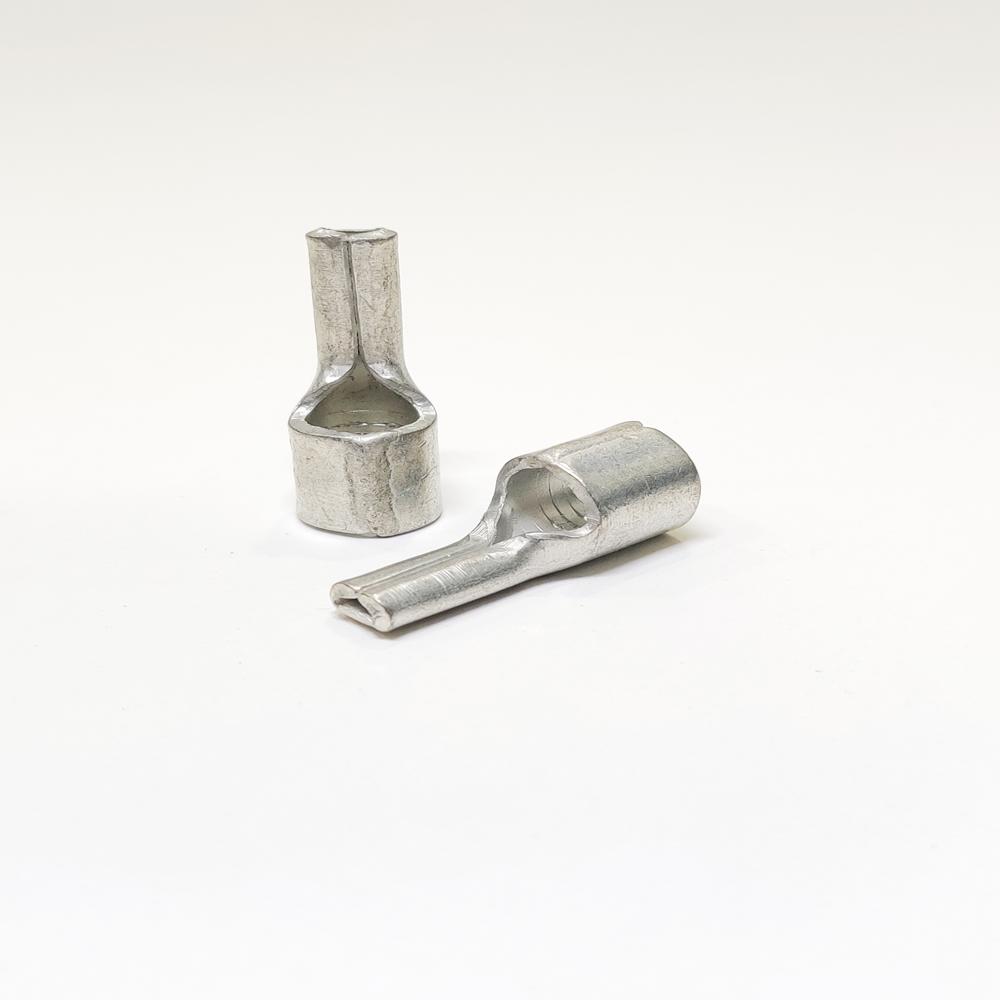

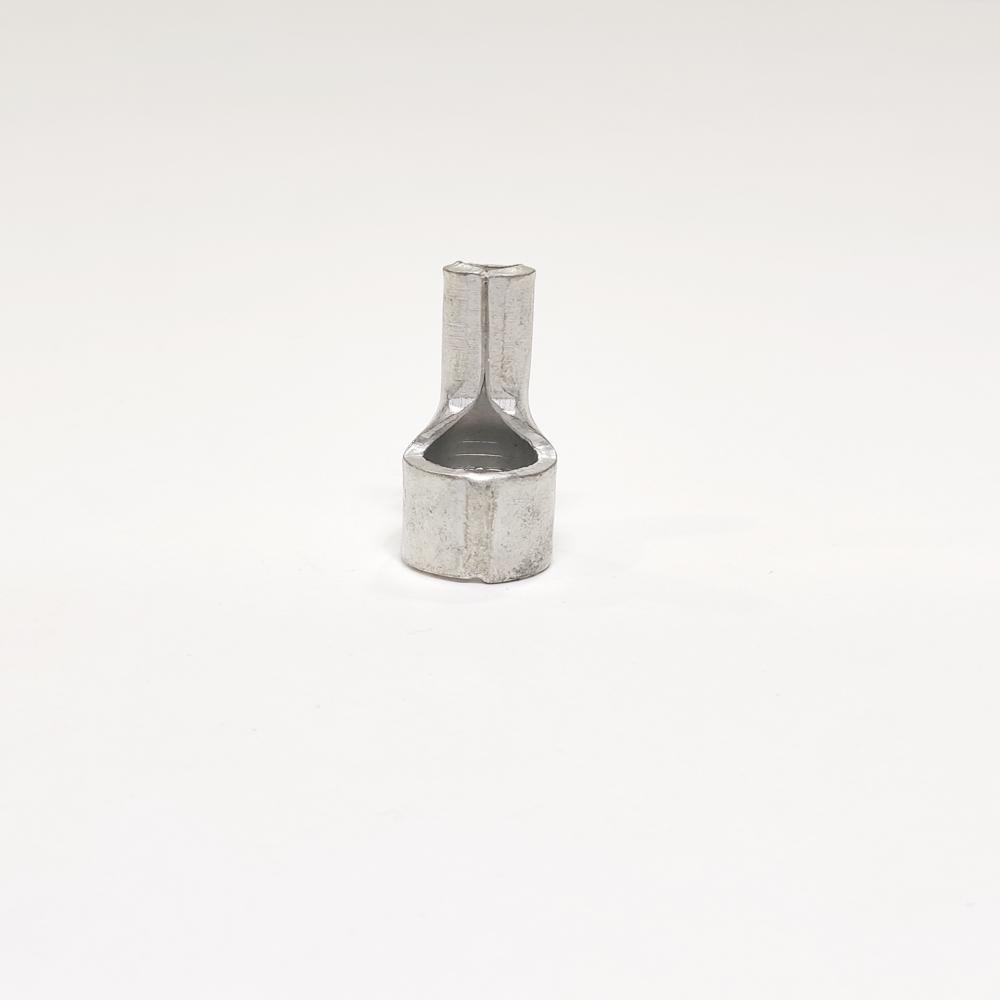

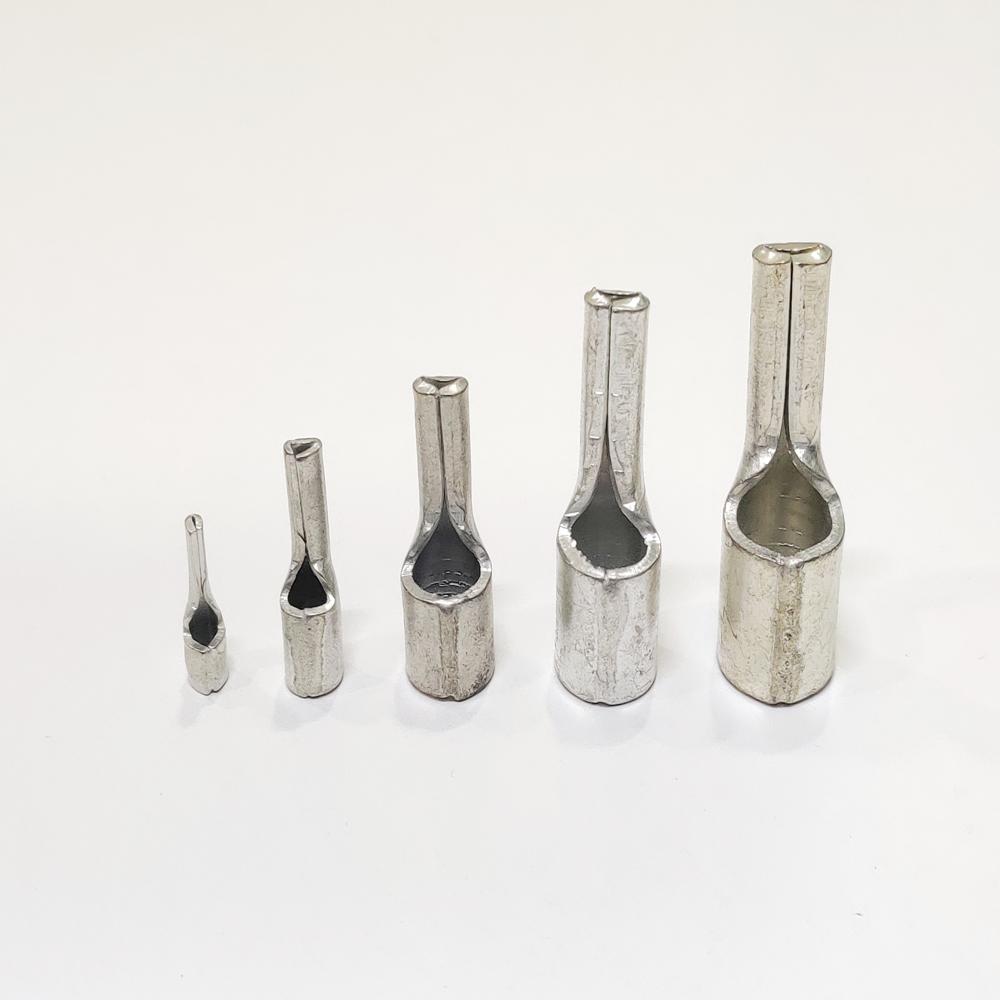

Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs
Pin Type Copper Lugs

Pin Type Copper Lugs

Price 6.0 INR/ Piece

MOQ : 1000 Pieces

Pin Type Copper Lugs Specification

  • Cable Diameter
  • 1.5mm2 to 16mm2 (varies with lug size)
  • Surface Treatment
  • Electro Tin Plated
  • Sealed
  • Non-Sealed
  • Thickness
  • Standard 1-3mm
  • Product Type
  • Copper Lug
  • Material
  • High Conductivity Copper
  • Application
  • Electrical wiring, Control Panels
  • Contact Resistance
  • 0.5 m
  • Insulation Resistance
  • >10^6 M
  • Diameter
  • Pin diameter 2mm to 8mm
  • Terminal Socket
  • Copper Pin, Open Barrel
  • Style
  • Pin Type
  • Fittings
  • Crimp fit
  • Rated Voltage
  • Up to 1100V
  • Weight
  • Depends on size (e.g., 2g to 50g)
  • Color
  • Tin Plated Silver
  • Available Sizes
  • 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2 etc.
  • Flammability Rating
  • Self-extinguishing
  • Connection Method
  • Crimp or Solder
  • Tensile Strength
  • High mechanical strength
  • Operating Temperature
  • -40C to +105C
  • Conformity Standard
  • IS/BS/IEC Standards
  • Corrosion Resistance
  • Excellent, due to tin plating
  • RoHS Compliance
  • Yes
  • Packaging Type
  • Plastic Bag/Box


Pin Type Copper Lugs Trade Information

  • Minimum Order Quantity
  • 1000 Pieces
  • Delivery Time
  • 6 Days


Pin Type Copper Lugs About

Pin Type Copper Terminal Lugs are precision-engineered electrical connectors designed for reliable cable termination in terminal blocks, circuit breakers, control panels, and other electrical equipment. Manufactured from high-conductivity electrolytic copper and finished with high-quality electro tin plating, these terminal lugs provide excellent electrical conductivity, low contact resistance, and superior protection against corrosion.

The pin-type design ensures easy insertion into terminal blocks and compact electrical connections where ring or fork terminals are not suitable. These lugs are designed for efficient crimping, offering a strong mechanical grip and a secure, vibration-resistant connection. Their robust construction ensures dependable performance in industrial, commercial, and utility electrical systems.

Available in a wide range of cable sizes, pin diameters, and barrel lengths, Pin Type Copper Terminal Lugs are suitable for low, medium, and high-current applications. Custom dimensions, markings, and OEM manufacturing services are also available to meet specific customer requirements.

Features:

  • Manufactured from high-conductivity electrolytic copper
  • Electro tin plated for enhanced corrosion resistance
  • Low electrical resistance for efficient current transfer
  • Precision pin design for secure terminal block connections
  • Strong crimp barrel for reliable cable termination
  • High mechanical strength and long service life
  • Vibration-resistant electrical connection
  • Easy installation with standard crimping tools
  • Available in multiple cable sizes and pin dimensions
  • OEM customization and private labeling available


Reliable Performance in Extreme Conditions

Operating effectively between -40C and +105C, these pin type copper lugs maintain excellent conductive integrity and mechanical strength even in challenging environments. Their superior durability and high-quality construction make them an ideal choice for industrial, commercial, and residential electrical installations.


Conformance and Safety Standards

Each pin type copper lug strictly adheres to IS/BS/IEC standards, ensuring safety, performance, and reliability. They incorporate a self-extinguishing feature for fire safety, alongside RoHS compliance, making them suitable for modern eco-friendly projects and environments demanding rigorous regulatory adherence.

FAQ's of Pin Type Copper Lugs:


Q: How are pin type copper lugs typically installed?

A: These lugs can be installed using either the crimping method or by soldering. Crimping involves using a crimp tool to apply pressure and secure the wire, while soldering uses melted solder for a solid electrical connection.

Q: What benefits does tin plating provide for these copper lugs?

A: Electro tin plating enhances corrosion resistance, ensuring prolonged performance and oxidation protection, while also promoting greater electrical conductivity and easier solderability.

Q: When should I use these lugs in electrical projects?

A: Pin type copper lugs are suitable whenever secure, reliable connections are needed in electrical wiring, control panels, and industrial terminals, especially where high mechanical strength and safety compliance are critical.

Q: Where can these copper lugs be applied?

A: They are designed for a broad range of applications, including control panels, electrical power distribution, machinery wiring, and equipment interconnections, as well as other scenarios requiring robust and safe terminations.

Q: What processes are used to ensure quality and compliance?

A: Manufacture and testing follow IS/BS/IEC standards, with careful electro-tin plating, mechanical strength assessment, and insulation resistance tests to guarantee product excellence and safety.

Q: Which sizes are available, and how do I select the right one?

A: Sizes range from 1.5mm2 up to 16mm2; the correct size depends on your cable's cross-sectional area, ensuring a snug fit and optimal current capacity.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Cable Lugs Category

Aluminium 2 Hole Lugs

Aluminium 2 Hole Lugs

Price 45 INR / Piece

Minimum Order Quantity : 100 Pieces

Material : Other

Contact Resistance : 0.5 m

Weight : Variable as per size (e.g., 30g 120g)

Application : Control Panels, Switchboards, Industrial Installations

Heavy Tubular Lugs

Heavy Tubular Lugs

Price 220 INR / Piece

Minimum Order Quantity : 100 Pieces

Material : Other

Contact Resistance : 0.004 m

Weight : Varies as per size (typically 5200g per piece)

Application : Power distribution, control panels, switchgears

Long Barrel Lugs

Long Barrel Lugs

Minimum Order Quantity : 100 Pieces

Material : Other, EC Grade Copper

Contact Resistance : < 0.001

Weight : 50200 gm (Depending on size)

Application : Suitable for Power Distribution

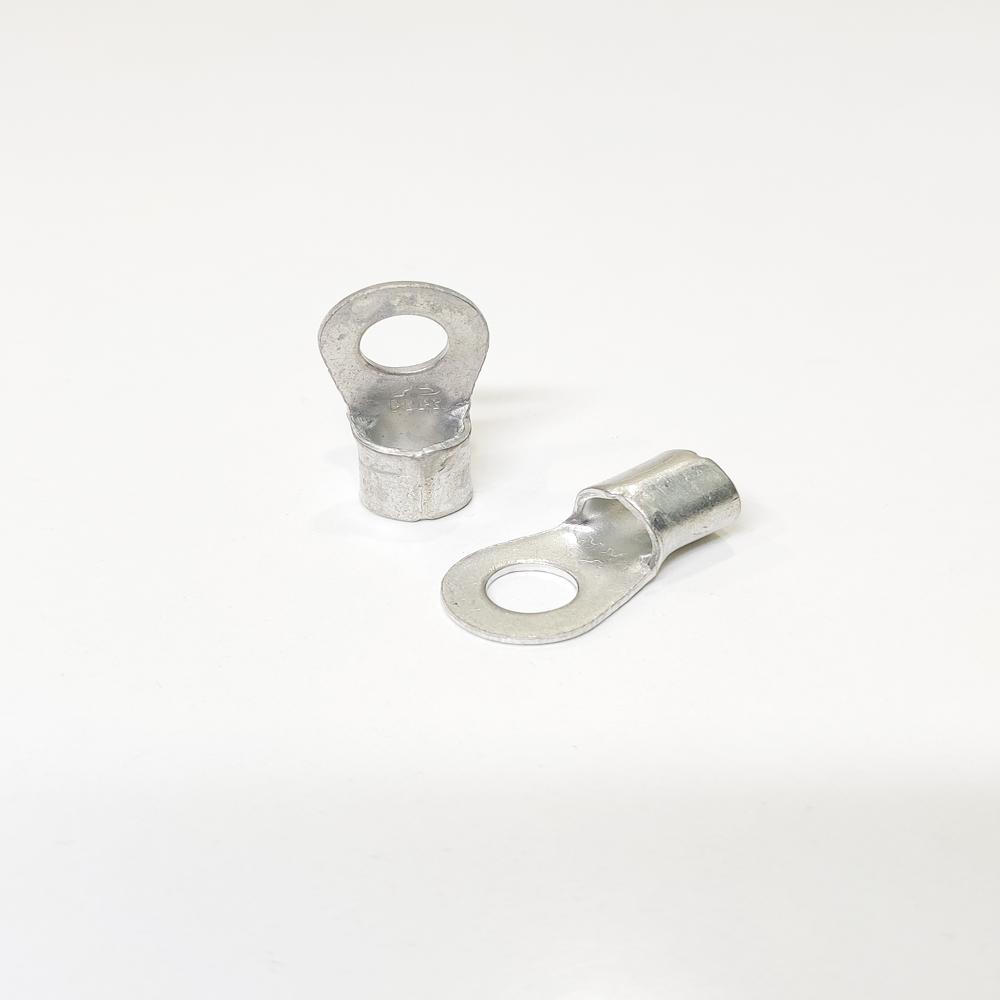

RING TONGUE TERMINAL
