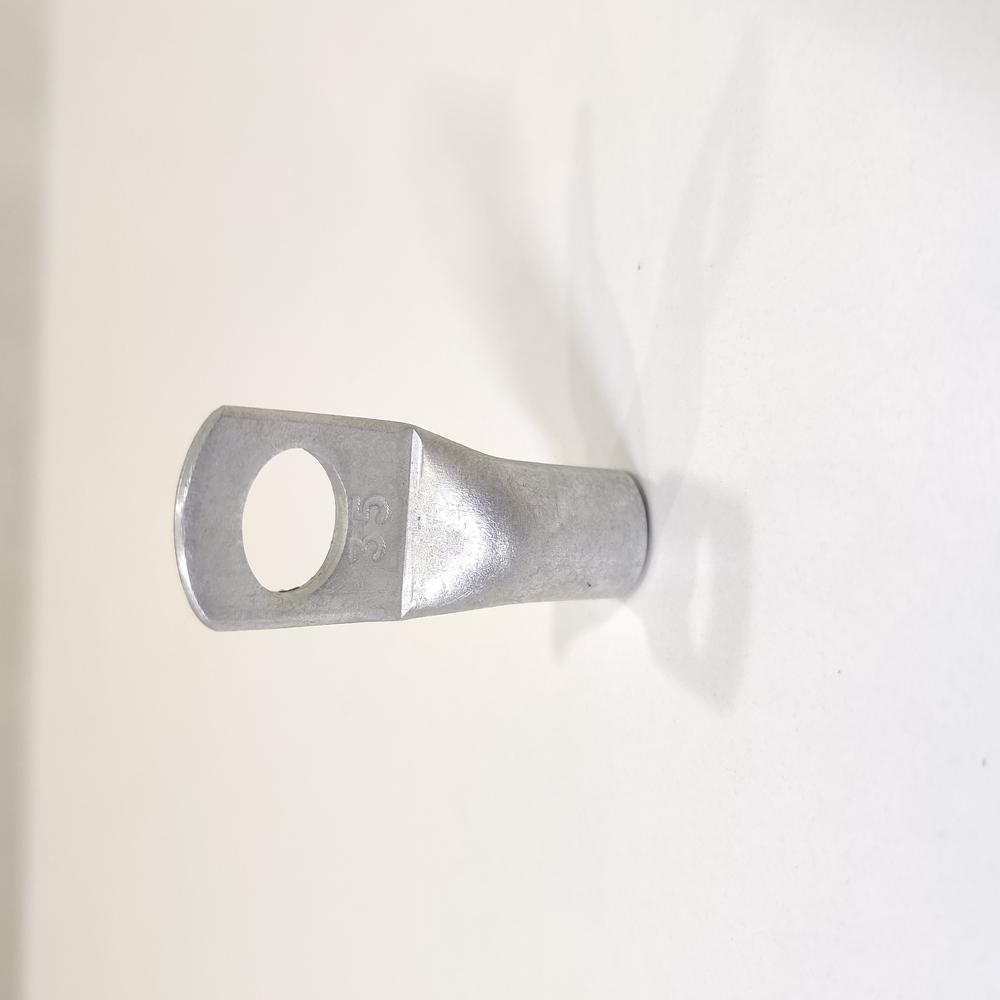

Tubular Cable Lug

Name: Tubular Cable Lug
Brand: Devson Metal Tech
Price: 6.0 INR
Availability: InStock

Price 6.0 INR/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Tubular Cable Lug Specification

Cable Diameter
6 mm2 - 300 mm2 (custom on request)

Sealed
No (Non-insulated)

Surface Treatment
Tin Plated/Plain Finish

Thickness
1.5 mm - 5 mm (varies by size)

Product Type
Tubular Cable Lug

Material
Electrolytic Copper/tinned or Aluminum

Application
Power Distribution, Grounding, Control Panels

Contact Resistance
<0.5 m

Insulation Resistance
>10 M

Diameter
As per cable size (typically 6mm-32mm)

Terminal Socket
Ring Type

Style
Straight/Tubular

Fittings
Compression/Crimp Type

Rated Voltage
Up to 1100 V

Weight
Approx. 10-100 grams (varies by size)

Color
Silver

Shape
Tube with Flat Lug

Mounting Hole Diameter
As specified (typically 8mm, 10mm, 12mm)

Finish
Smooth

Usage
Indoor & Outdoor Electrical Connections

Corrosion Resistance
High (Tin Plated)

Conductor Type
Stranded or Solid Cable

Flammability
Non-Flammable

Packaging Type
Box/Carton

Operating Temperature Range
-20C to +85C

Tubular Cable Lug Trade Information

Minimum Order Quantity
1000 Pieces

Delivery Time
6 Days

About Tubular Cable Lug

Aluminium Tubular Cable Lugs are precision-manufactured electrical connectors designed to provide a secure, low-resistance termination for aluminium conductors. Produced from high-conductivity EC-grade aluminium, these cable lugs ensure excellent electrical performance, reliable current transfer, and long service life in demanding industrial environments.

The seamless tubular construction offers superior mechanical strength and enables efficient crimping, resulting in a strong and vibration-resistant connection. These lugs are suitable for use in power transmission, electrical distribution, switchgear assemblies, transformers, control panels, renewable energy systems, substations, and industrial wiring applications.

Manufactured in accordance with international quality standards, Aluminium Tubular Cable Lugs are corrosion-resistant, lightweight, and easy to install. They are available in multiple sizes, hole diameters, and barrel lengths to meet various cable termination requirements. Custom dimensions, finishes, and markings can also be supplied based on customer specifications.

Features:

Manufactured from premium EC-grade aluminium
High electrical conductivity with minimal power loss
Seamless tubular construction for maximum strength
Excellent corrosion and oxidation resistance
Strong crimping performance for reliable connections
Lightweight and easy to handle
Suitable for indoor and outdoor electrical installations
Available in standard and customized sizes
Long operational life with low maintenance
Precision engineered for industrial and utility applications

Versatile Electrical Connectivity

This tubular cable lug perfectly accommodates both stranded and solid conductors, providing a robust interface for diverse electrical installations. Its compatibility with multiple cable sizes and mounting hole diameters-as specified, typically 8mm, 10mm, or 12mm-makes it an excellent choice for power distribution, control panels, and grounding systems. The lug's straight/tubular style and smooth finish further facilitate easy integration during assembly.

Superior Durability & Safety Features

Engineered from tin-plated electrolytic copper or durable aluminum, this lug resists corrosion and delivers stable performance from -20C to +85C. The product is non-flammable and ensures high insulation resistance (>10 M) and minimal contact resistance (<0.5 m), supporting safe installations up to 1100 V. Its sturdy construction, with thicknesses between 1.5 mm and 5 mm, supports reliable operation in demanding environments.

FAQ's of Tubular Cable Lug:

Q: How is the tubular cable lug installed in electrical circuits?

A: The lug is designed for compression or crimping onto stranded or solid conductors. After stripping the cable, insert it into the tubular section and secure using a compatible crimping tool, ensuring a strong electrical and mechanical connection. The flat lug can then be bolted to terminals or bus bars via the specified mounting hole.

Q: What applications are best suited for this tubular cable lug?

A: Ideal for power distribution, grounding, and control panels, this lug serves both indoor and outdoor connections. Its robust, corrosion-resistant, and non-flammable characteristics make it particularly fit for environments where safety and longevity are essential.

Q: When should I use a tin-plated versus plain finish cable lug?

A: Tin-plated lugs are recommended for applications where high corrosion resistance is important, such as humid or outdoor environments. Plain finish versions may be used in controlled, dry settings where corrosion is less of a concern.

Q: Where can I use these lugs in terms of cable size and mounting?

A: The lugs accommodate cable diameters from 6 mm2 up to 300 mm2 (custom sizes available upon request), and fit typical mounting hole diameters of 8mm, 10mm, or 12mm. This makes them compatible with a wide variety of terminal boards, equipment, and grounding systems.

Q: What are the benefits of using a non-flammable, high insulation resistance cable lug?

A: Non-flammable and highly insulating lugs greatly enhance installation safety by minimizing the risk of electrical fires and leakage currents, especially in high-voltage applications up to 1100 V. This delivers peace of mind for both installers and end users.

Q: Is this cable lug suitable for outdoor installations?

A: Yes, with its high corrosion resistance, robust construction, and temperature tolerance from -20C to +85C, this lug is suitable for both indoor and outdoor settings, ensuring dependable, long-term performance even in varying environmental conditions.
